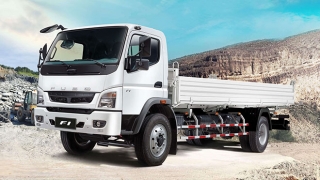

2024 Fuso FI 1217R Cargo 22 ft


Fuso FI 1217R Cargo 22 ft Overview

The Fuso FI in the Philippines serves as one of the Japanese brand’s medium-duty trucks in the country. It comes in the form of a 6-wheeler configuration that comes in at 22 feet in length and has a gross vehicle weight of 11.9 tons or 11,900 kg.

The Fuso FI 1217R 6-wheeler truck has a wheelbase of 4,800 mm. It has an overall length of 8,475 mm, overall width of 2,210 mm, and an overall height of 2,480 mm. The 22-foot long medium-duty truck has a payload capacity of 7,840 kg.

The Fuso FI 1217R comes powered by a 4.0-liter inline-6 turbocharged diesel motor that produces 170 hp and 520 Nm of torque. Power is sent to the rear wheels via a 6-speed synchromesh transmission. It comes with a 200-liter fuel tank along with a 32.3-liter AdBlue tank to better help the vehicle meet environmental standards.

The medium-duty truck rides on a reverse Elliot front axle and a fully floating rear axle. The suspension comes in the form of parabolic leaf springs with shock absorbers at the front and semi-elliptical with auxiliary spring suspension at the rear. Stopping power is provided by fully air S-Cam dual circuit brakes while its parking brake utilizes a pneumatically operated spring actuator with a hand brake valve acting on the rear axle. An engine brake is also available with the truck.

As for features, the truck comes with a multi-adjustable air pressure driver’s seat along with a tilt and telescopic adjustable steering wheel to give the driver an optimum driving position. The Fuso FI 1217R also comes with cruise control as well as power windows adding further convenience for the driver. On top of this, it also comes with ABS and a differential lock buzzer to inform the driver of the vehicle’s differential lock position. Other notable features include an intelligent meter cluster and daytime running lights.

Fuso FI 1217R Cargo 22 ft Variant and Pricelist

View our pricelist table and select a variant to view further specifications.

Fuso FI 1217R Cargo 22 ft 6 Wheeler



6 Wheeler
