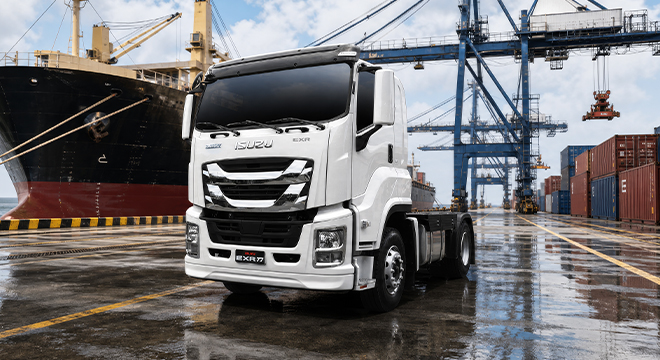

Isuzu E-Series EXR77 H Tractor Head 4 Wheeler

Isuzu E-Series EXR77 H Tractor Head 4 Wheeler Specifications

Summary

Truck & Bus Segment	Medium-duty Truck
Cab Type	Single Cab
Body Type	Tractor Head
Body Application
Price	PRICE ON REQUEST
Seating Capacity	3

Engine & Transmission

Engine Model	6WG1-TCG52
Engine Size (L)	15.7L
Engine Type	6-Cylinder turbo charged, 4 stroke in-line, water cooled
Cylinder Count	6
Valve Count	24
Transmission Type	Manual
No. of Gears	16 Speed
Drive Type	Rear-Wheel Drive

Performance

Max Power (hp)	417hp
Max Torque (Nm)	2,060Nm
Top Speed (km/h)	N/A
Gradeability	20%

Fuel & Economy

Fuel Type	Diesel
Fuel Capacity (L)	400L
Emission Standard	EURO V

Dimensions

Gross Weight (Kg)	18,000kg
Overall Width (mm)	2,540mm
Overall Height (mm)	3,720mm
Overall Length (mm)	5,790mm
Wheelbase (mm)	3,450mm
Wheelbase Extension	N/A
No. of Wheels	6
Front tire size	295/80R22.5-18PR
Rear tire size	295/80R22.5-18PR

Suspension & Brakes

Front Suspension	Taper spring double shock absorbers
Rear Suspension	Taper spring double shock absorbers
Front Brakes	Air Brakes
Rear Brakes	Air Brakes
ABS	NO
Parking Brakes	YES

Features

Air Conditioning	Yes
Adjustable Drivers Seat	Yes
Crusie Control
Telematics	No
Warranty (Km)	N/A
